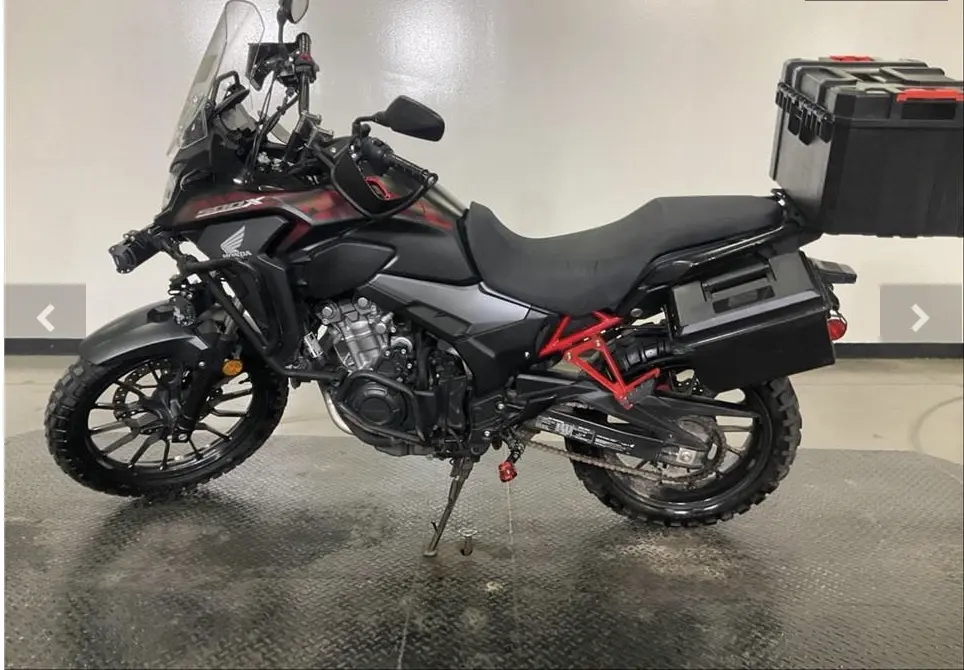

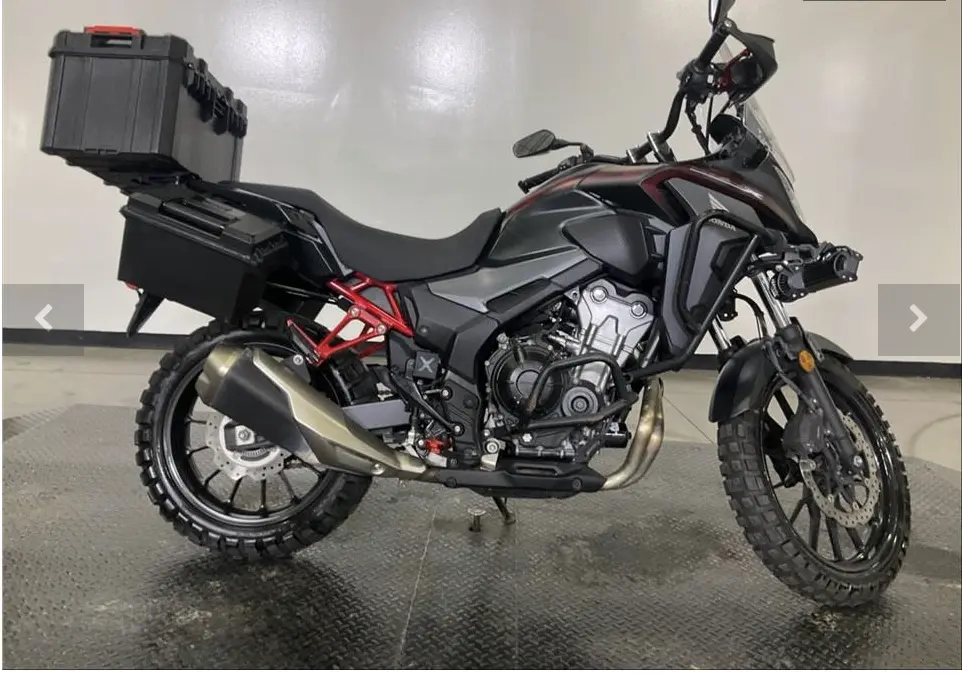

2021 HONDA CB500XA (ABS)

Miles: 16493
VIN: MLHPC6453M5200357

Key Specifications

• Engine type: Liquid-cooled, DOHC, 4-valves per cylinder, parallel-twin

• Displacement: 471 cc

• Bore × Stroke: 67.0 mm × 66.8 mm

• Compression ratio: 10.7 :1

• Fuel system: PGM-FI (electronic fuel injection)

• Transmission: 6-speed manual; final drive via sealed O-ring chain

• Front suspension: 41 mm conventional telescopic fork; travel ~150 mm (≈5.9 in)

• Rear suspension: Pro-Link single shock; nine-position spring preload adjuster; travel ~135 mm (≈5.3 in)

• Front brake: Single 310 mm wave-disc with 2-piston caliper + ABS

• Rear brake: Single 240 mm wave-disc with 1-piston caliper + ABS

• Front tyre: 110/80-19 (on-off pattern)

• Rear tyre: 160/60-17 (on-off pattern)

• Wheelbase: ≈1,445 mm (≈56.8 in)

• Seat height: 830-834 mm (≈32.7-32.8 in)

• Ground clearance: ~180-181 mm (≈7.0 in)

• Fuel capacity: ~17.7 L (≈4.7-4.8 US gal)

• Wet/curb weight: ~197 kg (≈434 lb) (ready to ride)

• Rake / Trail: ~27.5° / 108 mm (~4.3 in)

• Overall length × width × height: ~2,155 mm × 825 mm × 1,410 mm (low screen)
