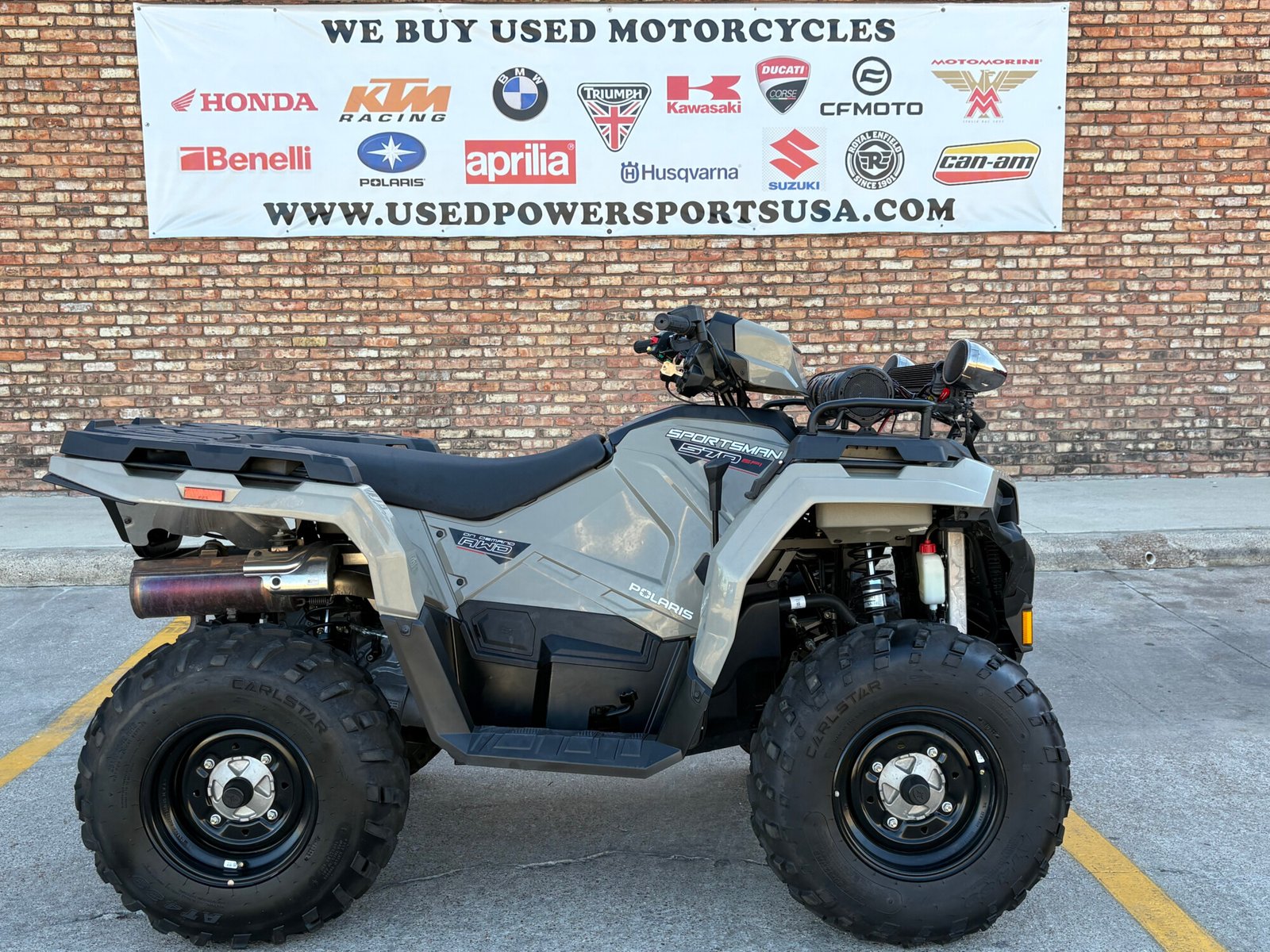

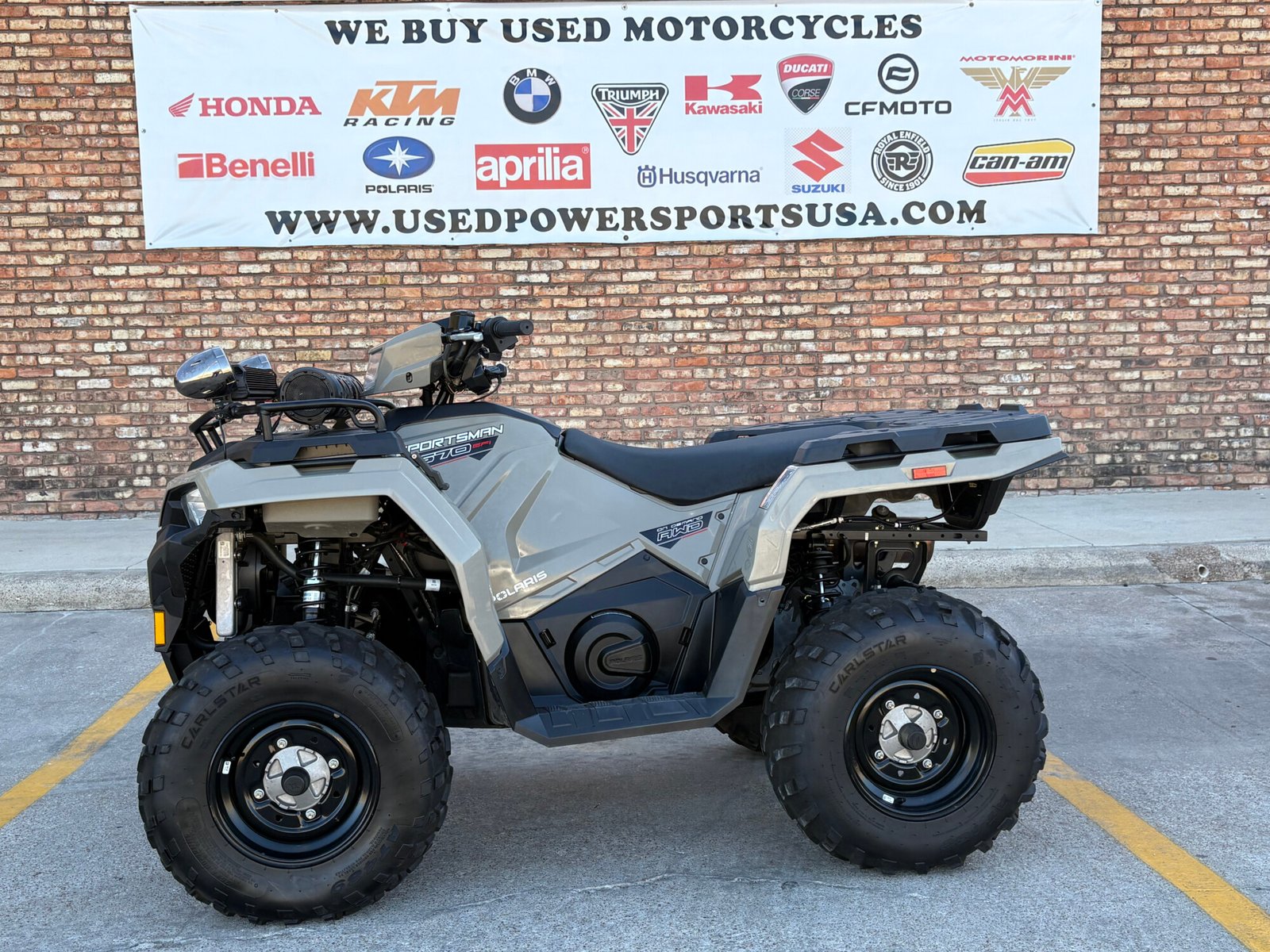

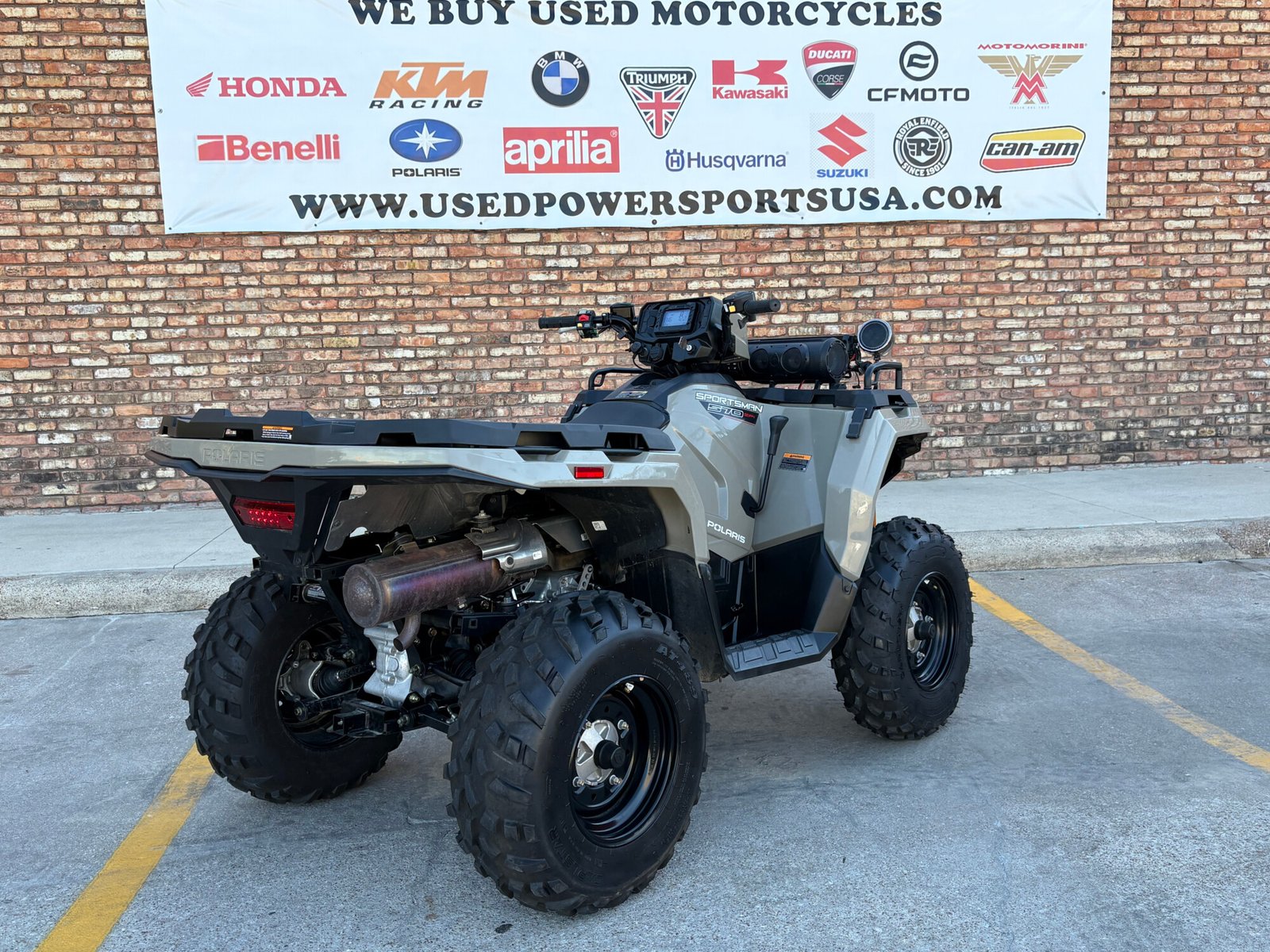

2025 Polaris Sportsman 570 4×4 ATV

Engine & Drivetrain

• Engine Type: ProStar 4-Stroke DOHC Single Cylinder

• Displacement: 567 cc

• Horsepower: 44 hp

• Fuel System: Electronic Fuel Injection (EFI)

• Cooling: Liquid-Cooled

• Drive System: On-Demand AWD / 2WD

• Transmission: Automatic PVT (CVT) with P/R/N/L/H

• Final Drive: Shaft

Chassis & Suspension

• Front Suspension: MacPherson Strut – 8.2 in (208 mm) travel

• Rear Suspension: Dual A-Arm IRS – 9.5 in (241 mm) travel

• Front Brakes: Hydraulic Disc

• Rear Brakes: Hydraulic Disc

• Front Tires: 25 × 8-12

• Rear Tires: 25 × 10-12

• Wheels: Steel (Aluminum on higher trims)

Dimensions & Capacities

• Overall Length: 83 in (2108 mm)

• Overall Width: 48 in (1219 mm)

• Overall Height: 47 in (1194 mm)

• Wheelbase: 50.5 in (1283 mm)

• Ground Clearance: 11.5 in (292 mm)

• Estimated Dry Weight: 760 lb (345 kg)

• Fuel Capacity: 4.5 gal (17 L)

Payload & Towing

• Front Rack Capacity: 90 lb (41 kg)

• Rear Rack Capacity: 180 lb (82 kg)

• Payload Capacity: 485 lb (220 kg)

• Towing Capacity: 1,350 lb (612 kg)

• Hitch Type: Standard 1.25-in Receiver
